Network Analyzer Calibration Kit

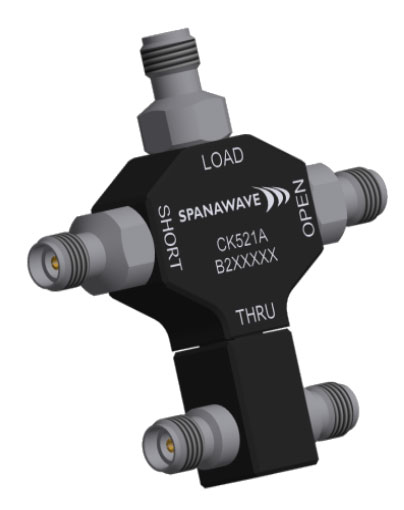

CK521A: 4-in-1 OSLT Calibration Kit, DC to 26.5 GHz, Type-3.5 mm (f) 50 Ohm

Overview

The Network Analyzer Calibration Kits with open, short, load, and thru (OSLT) provide the RF components needed to enable stable and accurate error correct measurements. Calibration of a network analyzer using Spanawave's Network Analyzer Calibration Kits allow for precise measurements. The Calibration Kits offer broad test equipment coverage for use with the 8003 Scalar Network Analyzer as well as being compatible with most network analyzers produced by other manufacturers. Spanawave calibration kits yield complete calibrations, as it takes into consideration the three major sources of systematic error correction by one port calibration at both ports.

Specifications

Interface
According to
Mechanically compatible with
3.5mm (f)
2.92 mm and SMA
Electrical Data
Thru
Return loss ≥ 34 dB, DC to 4 GHz
≥ 32 dB, 4 GHz to 8 GHz
≥ 30 dB, 8 GHz to 26.5 GHz
Open
Error from nominal phase1 ≤ 1.0°, DC to 4 GHz
≤ 2.0°, 4 GHz to 8 GHz
≤ 3.0°, 8 GHz to 26.5 GHz
Short
Error from nominal phase2 ≤ 1.0°, DC to 4 GHz
≤ 2.0°, 4 GHz to 8 GHz
≤ 3.0°, 8 GHz to 26.5 GHz
Load
Return loss


DC Resistance
Power handling
≥ 40.0 dB, DC to 4 GHz
≥ 35.0 dB, 4 GHz to 8 GHz
≥ 30.0 dB, 8 GHz to 26.5 GHz
50 Ω ± 0.5 Ω
≤ 0.5 W
